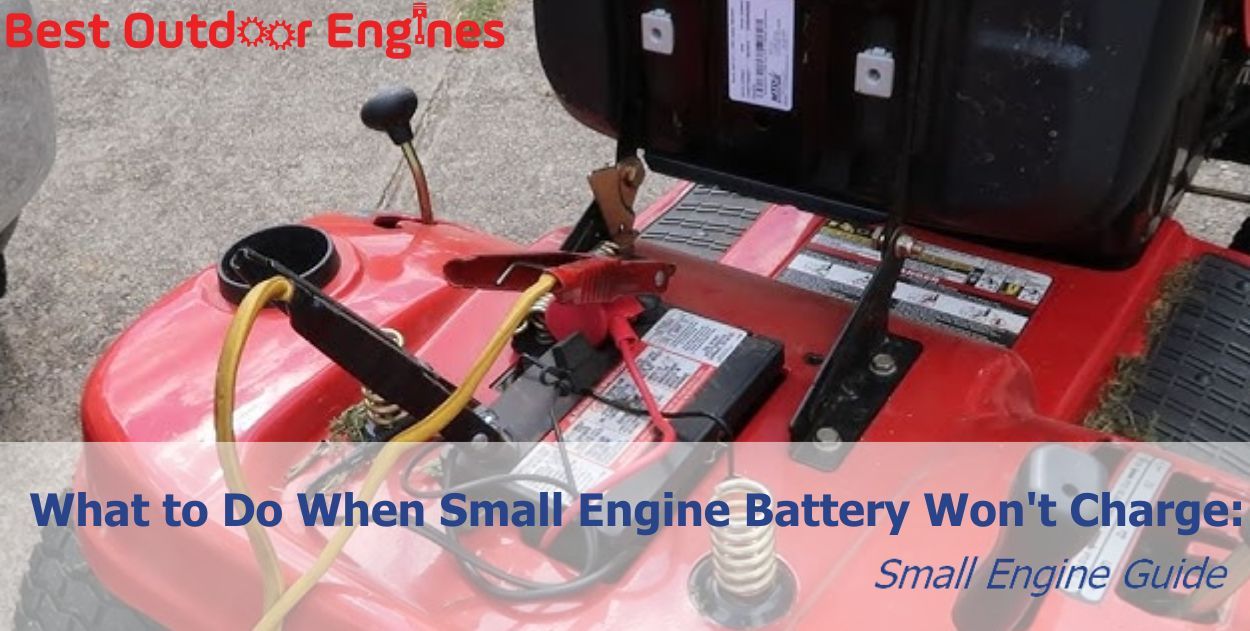

What to Do When Small Engine Battery Won't Charge: Small Engine Guide

An alternator is responsible for producing the electricity needed to charge the battery. If there is something wrong with it, then no power goes to the battery in form of a charge.

Voltage regulator is responsible for adjusting voltage going into the battery. It fails when it either gives too much or too little charging current to your small engine’s accumulator.

A worn-out battery may not hold a charge or its capacity may be impaired or it can show visible signs of physical damage like cracks on housing.

Any loose connections at the terminals could disrupt electrical flow preventing full recharging if any at all happens.

Checking for Visible Signs of Damage or Wear: Check visually for any signs like corrosion, damages on wires as well as alternator malfunctions that indicate your small engine problems are associated with the charging system.

Testing the Battery: Put a multimeter across the positive terminal flowing towards the negative one for reading voltage readings. A healthy battery should have around 12.6 volts at full charge; anything less than this shows something is amiss somewhere else.

Alternator Testing: With engine running use a multimeter on alternator output. Normal voltage here should fall between 13.5 and 14.5 volts. If it doesn’t, you have a problem with your alternator.

Steps to Diagnose Issues with the Voltage Regulator: To check the regulator's performance measure voltage supplied by unit’s terminals being on for some time. Any fluctuating or inaccurate values mean the regulator is defective.

Ensuring All Connections Are Clean and Secure: This includes checking whether batteries’ connections are tightened up as well as free of any rusts that could prevent the flow of current.

Instructions for Fixing or Replacing a Faulty Alternator: When your small engine’s system detects a faulty alternator, you can follow instructions from the manufacturer on how to remove it before installing a new one. Make sure that the installation was done correctly regarding wiring and all other relevant things.

How to Replace a Malfunctioning Voltage Regulator: Follow manufacturers manual in order to replace faulty voltage regulator with new one which they provide. Find out what kind of a regulator your engine model requires before purchasing it.

Tips for Maintaining a Healthy Battery and Replacing It If Necessary: Maintain battery life through periodic cleaning and recharging; if cannot retain charge effectively anymore, then buy a new battery.

Steps to Clean Battery Terminals and Secure All Electrical Connections: Scrub the posts using baking soda mixed with water until any corroded junk is removed by use of wire brush. Make sure there are no loose connections so that electricity can flow smoothly between objects connected to each other through them.

Preventative Inspections to Identify Problems Early: Check the battery, alternator and connections frequently. It helps to identify any problems with them before they escalate into something major.

Battery Care: Always keep your battery clean, fully charged and store it right during periods of inactivity. Make use of a battery maintainer to keep it at an optimal charge level.

Protecting Electrical Components: To prevent moisture damage and corrosion of electrical components, store the engine in a dry area where you will also regularly check on and tidy up the links.

Understanding, diagnosing, and maintaining the charging system is crucial for reliable small engine performance. Periodic servicing, good maintenance practices, and timely replacements can help avoid charging system problems and extend engine life expectancy.

1. How do I know if my small engine battery is not getting charged?

Some of the typical signs are slow or no charge while some include dimming or flickering lights, engine stalling and obstructive dashboard signals(light).

2. How often should I inspect my small engine’s charging system?

Conduct a check on your Charging system at least once every few months as well as prior to leaving your generator idle for a very long time.

3. Can I test the alternator and voltage regulator myself?

You can test them yourself using proper instructions and tools but consult if unsure about how best to proceed.

4. What tools do I need to diagnose charging system issues?

In order to analyze voltage drop along with continuing continuity among its components; all you will need is a multi-meter.

5. When should I replace my small engine battery?

Replace the battery when it fails to hold charge, shows signs of damage or is over 3-5 year.
