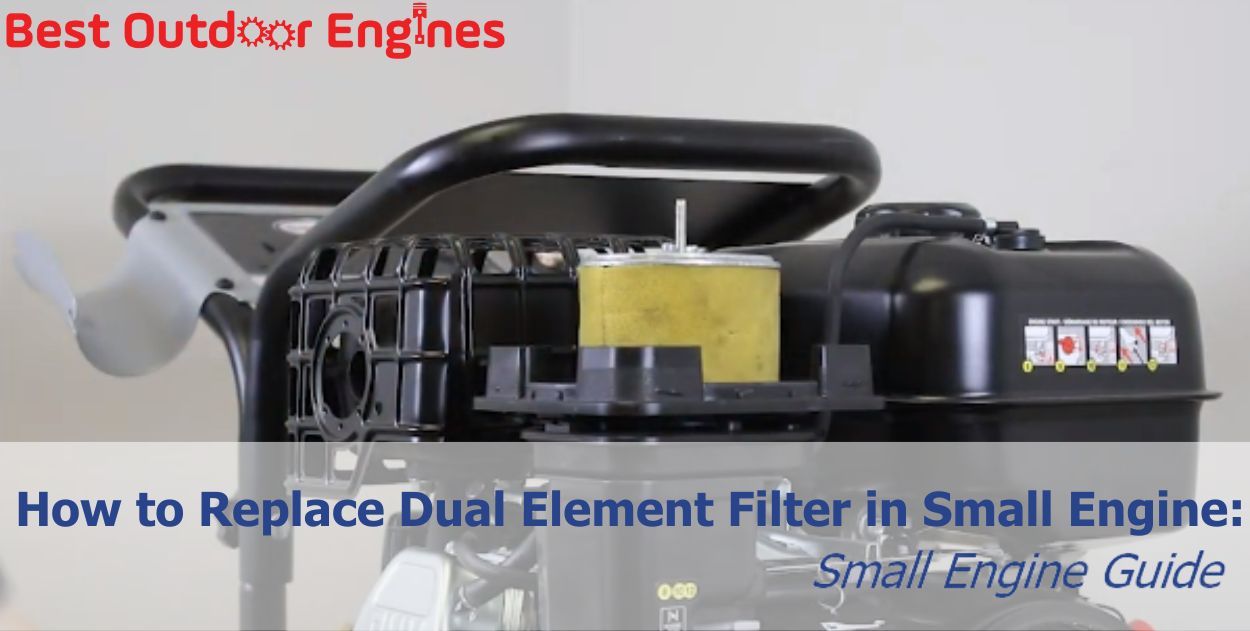

How to Replace Dual Element Filter in Small Engine: Small Engine Guide

A Dual Element Air Filter is a sophisticated air filtration system designed to provide an enhanced level of air purity for engines by employing two distinct filtration stages. The first stage typically involves a larger, more porous filter, which is adept at capturing larger particles such as dust and debris. This initial filter acts as a frontline defense, preventing these larger particles from entering the engine's delicate internal components. Following this, the air passes through the second stage, which consists of a finer filter. This secondary filter is responsible for trapping smaller impurities, such as pollen and soot, ensuring that only the cleanest air reaches the engine's combustion chamber.

This dual-stage filtering process is crucial for maintaining engine efficiency, performance, and longevity. By providing a cleaner air intake, the Dual Element Air Filter significantly reduces the risk of engine wear and tear caused by abrasive particles. Moreover, it helps in maintaining optimal air-fuel ratios, which is essential for the engine's combustion process, thereby ensuring that the engine operates at peak efficiency and with minimal emissions.

Dual Element Air Filters are predominantly used in engines that operate in environments where air quality is compromised by excessive dust, debris, and other airborne particles. These conditions are commonly encountered in off-road vehicles, construction machinery, agricultural equipment, and certain industrial applications. Engines in these sectors require an advanced level of filtration to protect against the harsh particulate matter they are exposed to during operation.

Furthermore, high-performance engines, such as those found in some premium automotive and racing vehicles, also benefit from Dual Element Air Filters. These engines demand a highly purified air intake to maintain their finely tuned performance and efficiency. The dual filtration system ensures that even the smallest of particles are removed, thus providing the clean air necessary for optimal combustion and power output.

In essence, engines that are either exposed to challenging environmental conditions or those that require precision performance are the primary users of Dual Element Air Filters. The dual-stage filtration not only extends the engine's lifespan but also enhances its efficiency and reliability under demanding conditions.

Changing a Dual Element Air Filter is a straightforward process that can significantly impact the performance and longevity of your engine. Here's a guide we want to show you:

Step 1: Remove Knob(s) and Cover:

Start by locating and unscrewing the knob(s) that secure the air filter cover. Carefully remove the cover to expose the air filter elements inside. This is a crucial first step as it provides access to the filter components that need inspection or replacement.

Step 2: Carefully Remove Foam Pre-Cleaner:

If your air filter system includes a foam pre-cleaner, gently take it out. The pre-cleaner is typically used to capture larger particles before they reach the main filter element, reducing the load on the primary filter and extending its life.

Step 3: Inspect and Replace Filter Elements:

Examine the condition of the filter elements. If the filters are very dirty or show signs of damage, they should be replaced to ensure optimal air flow and protection for your engine. Ensure that the new filters are compatible and fit properly within the housing.

Step 4: Reinstall Cartridge, Nut(s), Pre-Cleaner, and Cover:

Once the filters are cleaned or replaced, reinstall the cartridge and any nuts that were removed. If your system includes a foam pre-cleaner, place it back before securing the cover. Make sure all components are correctly aligned and seated.

Step 5: Retighten Knob(s) Securely:

Finally, replace the cover and securely retighten the knob(s) to ensure that the air filter housing is sealed. This prevents unfiltered air from entering the engine, which could lead to contamination and reduced performance.

Maintaining the efficiency of a Dual Element Air Filter is the key for the smooth operation and longevity of engines exposed to harsh environments or those requiring high precision. If you want to achieve this, you need to follow a routine of regular maintenance and timely intervention.

Firstly, it's essential to conduct periodic inspections of the air filter. Yes, just simply look at it when you just finished your work. You should check the air filter more often especially if the engine is frequently used in areas with high dust and debris levels. Look for any signs of excessive dirt accumulation, damage, or wear on the filter elements.

The next critical thing to do is to clean the filters. The outer filter, typically bearing the brunt of larger particles, often requires more frequent cleaning than the inner one. It's important to follow the manufacturer's guidelines for cleaning to avoid damaging the filter media. Usually, a gentle tapping or blowing of compressed air is recommended for the outer filter. Meanwhile the inner filter, being more delicate, might necessitate careful washing or replacement if too soiled.

Moreover, ensuring the filters are completely dry before reinstallation is crucial to prevent moisture from entering the engine. Lastly, the integrity of the sealing gaskets should be checked to prevent unfiltered air from bypassing the filter. Adhering to these practices not only safeguards the engine's performance but also extends the filter's service life, making it a cost-effective routine for any engine reliant on dual element air filtration

Replacing a Dual Element Air Filter is a vital maintenance task that can significantly enhance the performance and extend the life of small engines. By following the outlined steps, even beginners can confidently undertake this task, ensuring that their engine runs efficiently and remains protected against harmful contaminants. Regular checks and timely replacement of the filter elements are key to maintaining the engine's optimal operating conditions. With the right tools and guidance, this maintenance procedure can be completed quickly, ensuring your small engine continues to operate at peak performance.

1. What is a Dual Element Air Filter?

A Dual Element Air Filter uses two distinct layers of filtration to remove particulates from the air before it enters the engine, consisting of a primary filter and a secondary finer filter to ensure maximum air purity.

2. Why is it important to replace a Dual Element Air Filter?

Regular replacement of the air filter is crucial for preventing clogs and ensuring a clean air supply to the engine, which is vital for maintaining optimal performance and fuel efficiency, as well as preventing premature engine wear.

3. How often should the Dual Element Air Filter be replaced?

The replacement frequency can vary based on the engine's operating environment. In dusty or dirty conditions, more frequent checks and replacements may be necessary. Always consult the engine's manual for manufacturer-specific recommendations.

4.Can I clean the Dual Element Air Filter instead of replacing it?

While the outer pre-cleaner element can often be cleaned, the inner paper element should be replaced rather than cleaned to ensure effective air filtration. Always inspect both elements and replace them if they are damaged or excessively dirty.

5. What are the risks of not replacing a dirty or damaged Dual Element Air Filter?

Neglecting to replace a compromised air filter can lead to reduced engine efficiency, higher fuel consumption, and increased engine wear due to the ingestion of harmful particles, potentially leading to costly repairs or engine failure.
